Overview

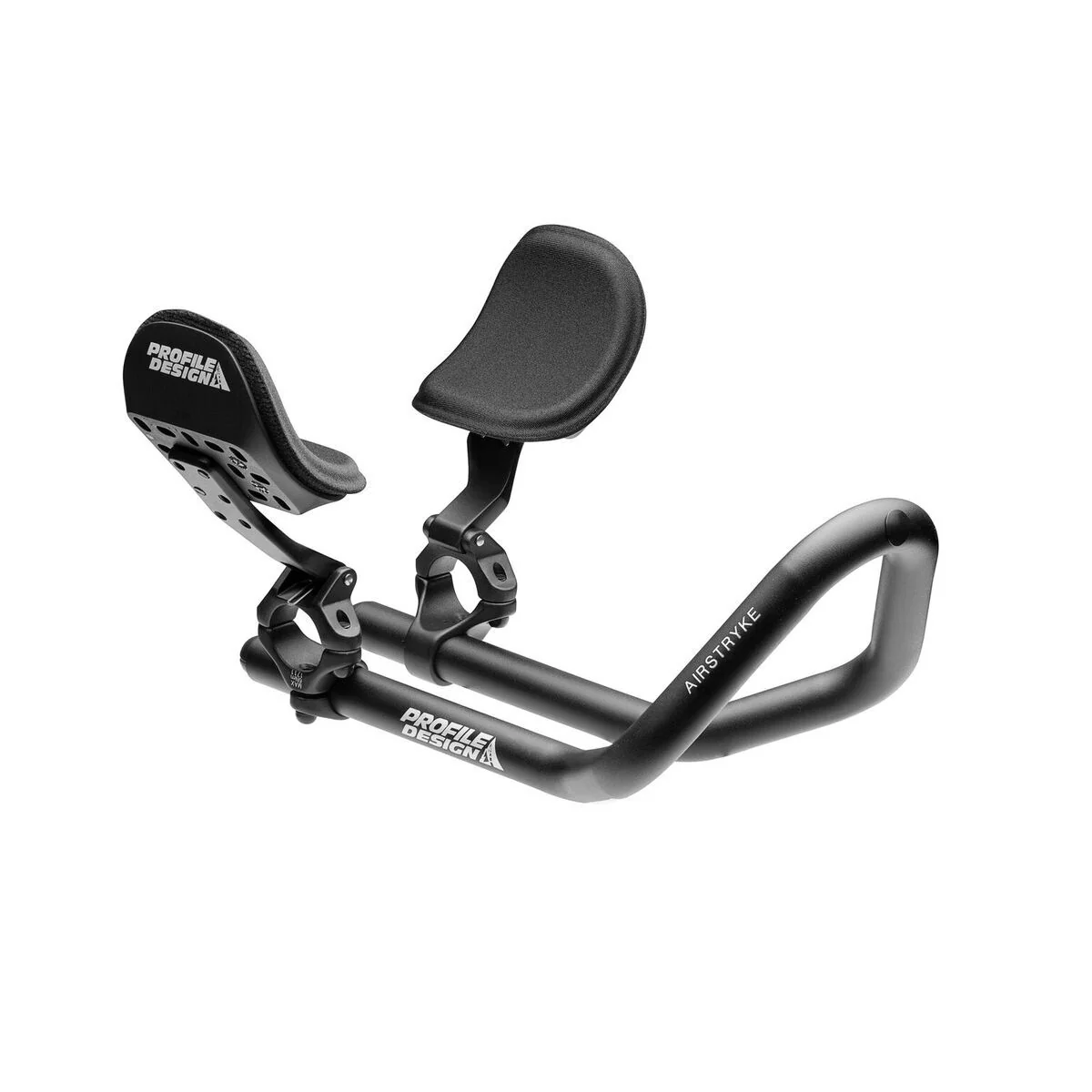

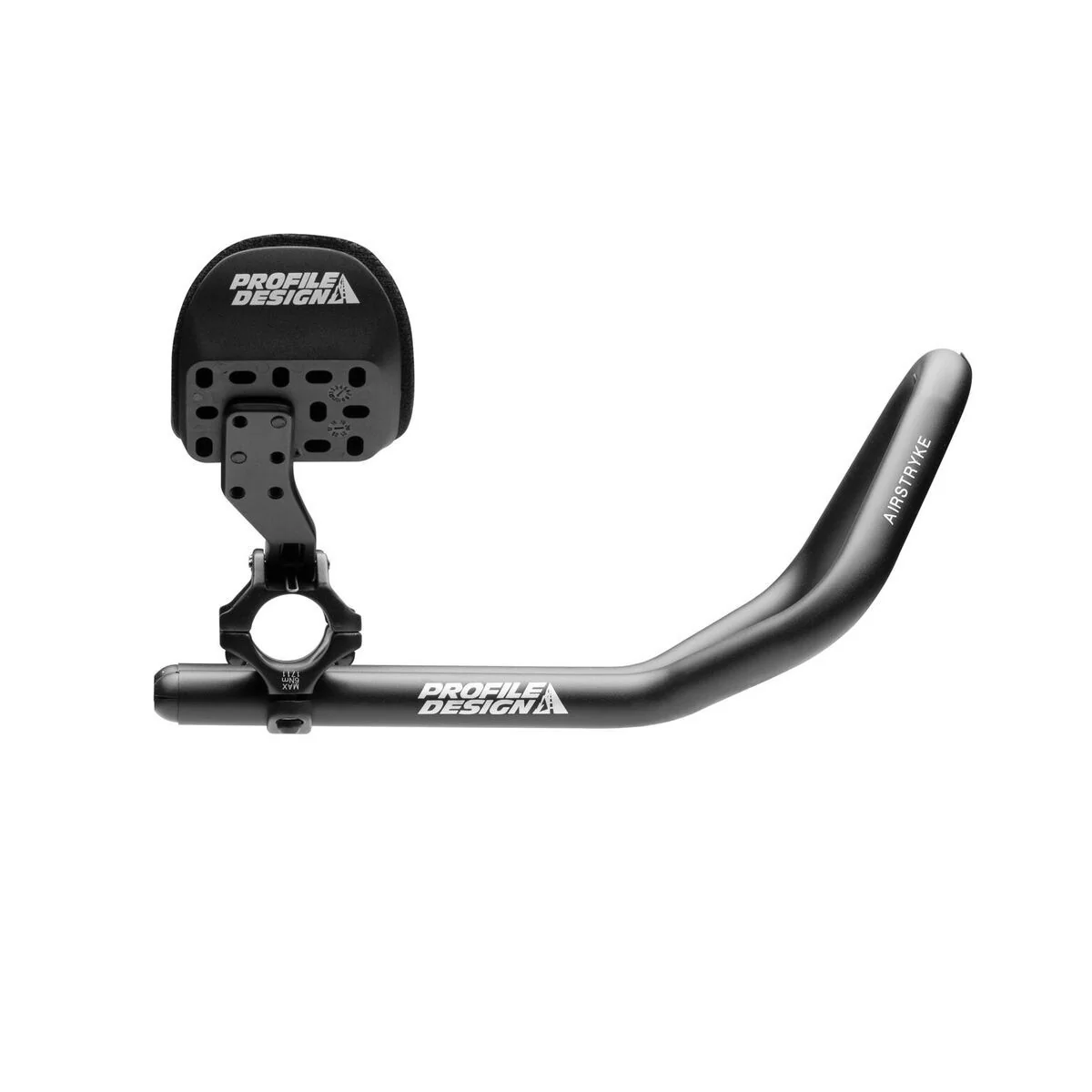

The Airstryke ii takes the features of the ever popular Airstryke and adds an expanded fit range and more comfortable armrest. The flip up bracket and classic shape are retained.

Performance

The Airstryke ii is intended to allow riders to add aerobars to their road or adventure bike without sacrificing the ability to hold the bars close to the stem. The comfortable grip angle and smoothly curved armrest offer a relaxed position for long days in the saddle.

Fit Data

Armrest Offset: -85mm to 17.5mm in 7.5mm steps
Armrest Width: 131mm to 298mm in 18.5mm steps
Armrest Stack: 40mm

Orgin

As one of the most popular model in the history of aerobars it seemed appropriate to update the much loved Airstryke with our new generation fit range and comfort focused armrest. We didn't want to change the elements that have made the bar so successful and the changes made just enhance the adjustability and comfort.

Specs

Bracket: L2 Flip-Up
Clamp Diameter: 31.8mm (26.0 w/Shims)
Armrest: Ergo Armrest
Armrest Stack: 40mm
Reach: -85mm to 17.5mm in 7.5mm steps
Extension Adjustment: 150mm (center of basebar - end)
Armrest Width: 155mm - 203mm
Color: Anodized matte Black
Weight: 592g

Tech Guide

Torque settings (all bolts are M6)

Bar Clamp: 6Nm
Extension Clamp: 6Nm
Armrest Bolts: 4.7Nm

Manual

Airstryke II Installation Instructions
