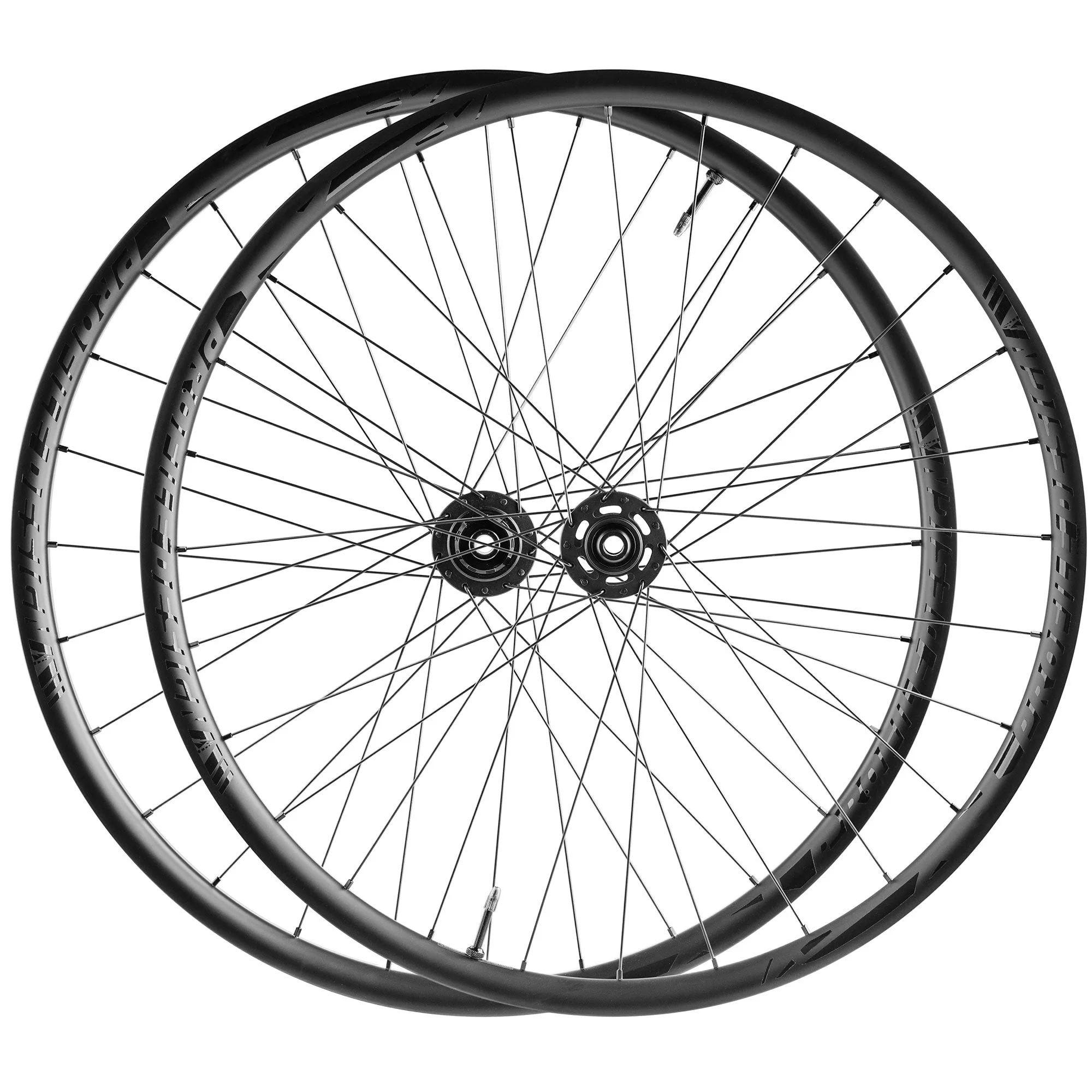

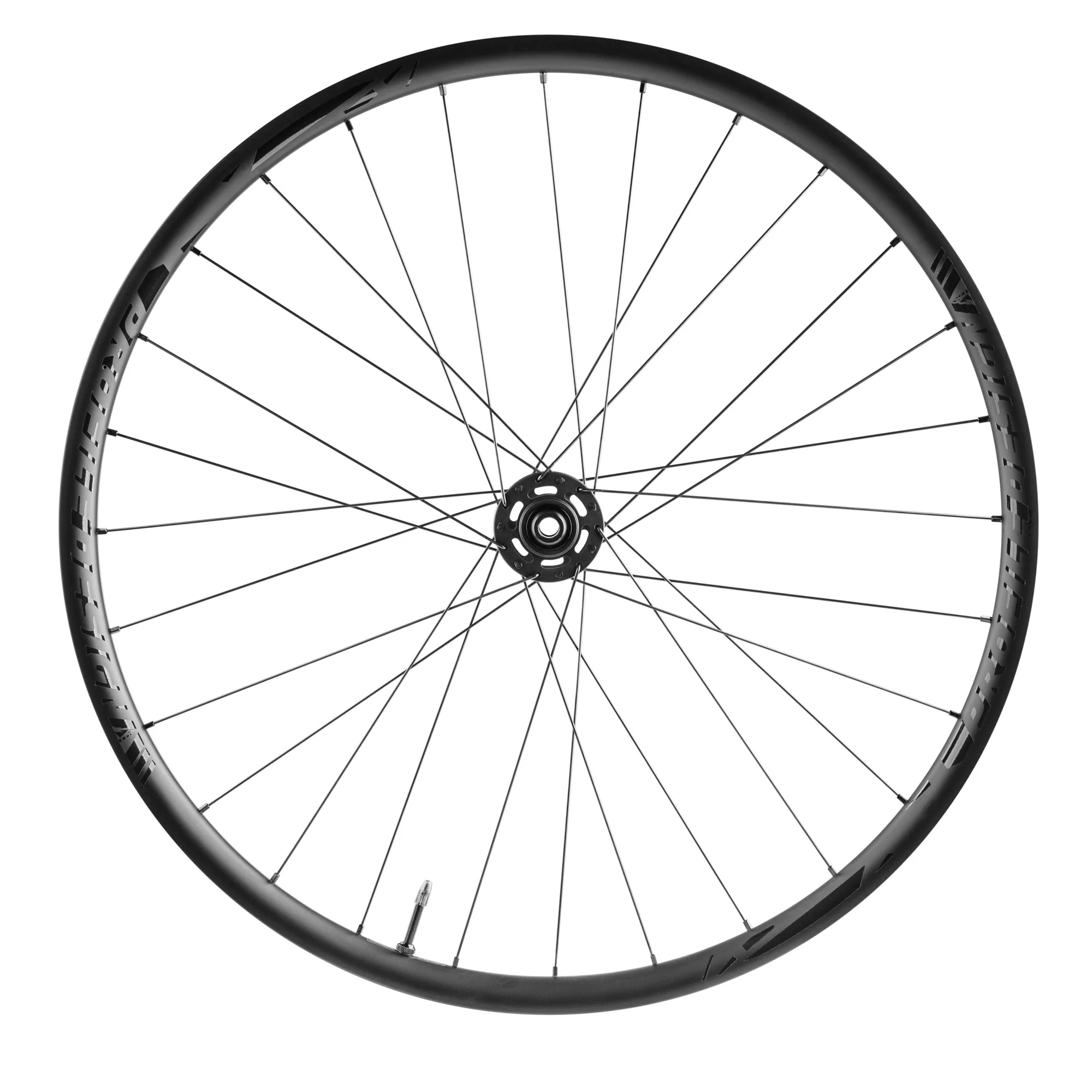

The shallow 22mm height of our new Carbon Gravel wheelset was conceived during a gusty, coastal gravel race when our designer decided that the 50mm rims he was using weren't the right choice for the occasion.

The rest of the specs were also developed to suit the way gravel bikes are being ridden - wide hookless TLR Carbon rims and a star ratchet hub for optimal responsiveness.

GMR 22mm rim depth makes for a great all rounder. If you’re looking for a wheelset for every day use, particularly if your riding conditions are often windy, this is the one. The 22mm height offers a great aero boost over a standard alloy wheelset but doesn’t add so much side area that the wind can push you around.

Of course, the shallower rim is also lighter, so it’s well suited to hilly terrain.

The GMR 22 Tubeless Disc-Brake is optimized for wide tires with lower tire pressure to meet the performance needs of modern riders in search of low rolling resistance and high compliance. With an internal width of 26mm, the wheelset is well suited for rough roads.

Specifications

22mm rim depth for a balance between aerodynamics and control.
Centerlock disc rotor mount
Extra stiff hub shell design.
Proprietary precision machined alloy hubs.
Widths optimised for wide race tyres.
Star Ratchet hub for rapid engagement
J-Bend spokes for easy servicing.
Sealed cartridge bearings.
Hand-built assembly.
Full Carbon Hookless, Tubeless Ready Rim.
Disc brake.

Tech Specs

Front Wheel

Weight: 720g
Diameter: 700c
Hub: 6061-T6 Alloy
Bearing Size:
Hub Compatibility: 12 x 100mm (Through-Axle)
Rotor Compatibility: Center Lock
Rim Depth: 22mm
Rim Width (Outside): 32mm
Rim Width (Inside): 26mm
Color: UD Carbon
Spokes: J-Bend - Stainless double butted
Spoke Count: 28
Spoke Pattern Non-Drive: 2 cross
Spoke Pattern Drive: 2 cross
Spoke Length Non Drive: mm
Spoke Length Drive mm
Nipples: 7075 Alloy Polyax Double Square
External Nipples: Yes
Tire Compatibility: Tubeless Ready (TLR) / Hookless
Max Tire Pressure: refer to Tire sidewall
Tire Width: 700c x 37-70mm

Rear Wheel

Weight: 850g
Diameter: 700c
Hub: 6061-T6 Alloy
Bearing Size:
Hub Compatibility: 12 x 142mm (Through-Axle)
Rotor Compatibility: Center Lock
Rim Depth: 22mm
Rim Width (Outside): 32mm
Rim Width (Inside): 26mm
Color: UD Carbon
Spokes: J-Bend - Stainless double butted
Spoke Count: 28
Spoke Pattern Non-Drive: 2 cross
Spoke Pattern Drive: 2 cross
Spoke Length Non Drive: mm
Spoke Length Drive: 2mm
Nipples: 7075 Alloy Polyax Double Square
External Nipples: Yes
11-Speed Compatible Hub: Yes (Shimano/SRAM)
12-Speed XDR Compatible Hub:
Tire Compatibility: Tubeless Ready (TLR) / Hookless
Max Tire Pressure: refer to Tire sidewall
Tire Width: 700c x 37-70mm

Wheelset

Set Weight: 1600g
Max Recommended Rider Weight (lbs): 300lbs

What's Included

Tubeless valves Stems - pre installed
Tubeless Rim Strips - pre installed
2 x 265mm extra spokes
2 x 267mm extra spokes
4 extra nipples
4 extra nipple washers

Manual

GMR Carbon Tubeless Disc-Brake Wheelset Installation Instructions
